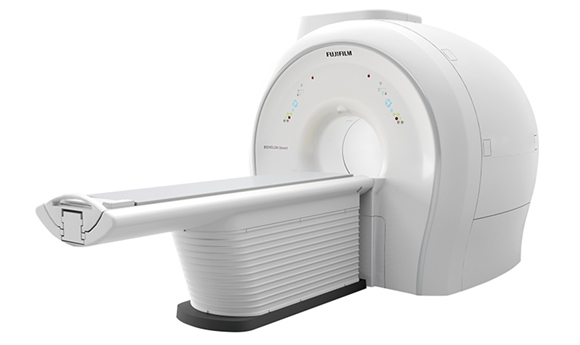

1.5T ECHELON Smart Plus
富士フイルムヘルスケア
MRI 1.5T 超電導型
進化するSynergyDrive。SynergyDriveがはやさに「診やすさ」と「ゆとり」をPlus。
![ECHELON Smart Plus](/ressources/img/expo/fhc_echelon_smart.jpg)
Deep LearningがかえるMRI検査の質をかえる
MRI検査にかかる時間は,課題の1つです。
さまざまな技術の進化の中
技術と真摯に向き合う富士フイルムが
はやさだけでなく
人の目にとって診断しやすい画像を追求
Deep LearningがMRI検査の質を,よりよく進化させます。
特長<1>
IP-RAPID × Synergy DLR Speed & Deep Learning
高速化ソリューション「IP-RAPID」に
Deep Learning Reconstruction*1「Synergy DLR」をPlus。画質を維持したまま,撮像時間をさらに短縮できます。
IP-RAPIDとSynergy DLRは組み合わせが自由自在。
検査シーンに合わせて自由にセレクトいただけます。
Iterative Process × Deep Learning Reconstructionでさらなる高速化&高画質化を実現
アンダーサンプリングにより撮像時間を短縮し,IP-RAPIDによる繰り返し再構成でノイズやアーチファクトを低減します。 さらにDeep Learning技術を活用して開発したDCNNを画像再構成技術に組み込んだSynergy DLRにより,さらなるノイズのみ除去を行い,より診やすい画像を導き出します。IP-RAPIDとSynergy DLRを組み合わせることで,画質を維持したまま撮像時間を短縮したり,撮像時間を維持したまま高精細画像を得られます。
![High Speed 検査に速さを High Speed 検査に速さを](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_01-1/1006532-1-jpn-JP/fhc_echelon_smartplus_01-1.jpg)
![High Speed 検査に速さを High Speed 検査に速さを](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_01-2/1006535-1-jpn-JP/fhc_echelon_smartplus_01-2.jpg)
![IP-RAPID IP-RAPID](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_01-3/1006538-1-jpn-JP/fhc_echelon_smartplus_01-3.jpg)
IterativeProcessとDeep Learningを活用したノイズ除去技術
![IterativeProcessとDeep Learningを活用したノイズ除去技術 IterativeProcessとDeep Learningを活用したノイズ除去技術](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_01-4/1006541-1-jpn-JP/fhc_echelon_smartplus_01-4.jpg)
![High Resolution 画像に高精細を High Resolution 画像に高精細を](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_01-5/1006544-1-jpn-JP/fhc_echelon_smartplus_01-5.jpg)
![High Resolution 画像に高精細を High Resolution 画像に高精細を](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_01-6/1006547-1-jpn-JP/fhc_echelon_smartplus_01-6.jpg)
*1 開発にDeep Learningを活用しています。導入後に自動的に装置の性能・精度が変化することはありません。
*2 掲示撮像の例を比較した際の数値です。
*3 Undersampling k-space
*4 Interpolated k-space with iterative process
*5 Deep Convolutional Neural Network
Speed × Deep Learning The Value by IP-RAPID × Synergy DLR
SpeedとDeep Learningがもたらす3つのPlus
Speedの「IP-RAPID」 × Deep Learning Reconstructionの「Synergy DLR」が,検査のさまざまなシーンに変化をもたらします。検査に合わせて,自由にセレクトできるさまざまなPlusが皆さまの日々の検査の質を向上させます。
![Plus One Scan 診断情報をPlus Plus One Scan 診断情報をPlus](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_01-7/1006550-1-jpn-JP/fhc_echelon_smartplus_01-7.jpg)
撮像時間を短縮できるため,同一検査時間であれば,より多くの撮像が可能となります。従来検査に対して,異なる画像種や断面など,追加撮像によって情報量を増やすことができ,診断をより確かなものに。
![Plus One Scan 診断情報をPlus Plus One Scan 診断情報をPlus](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_01-8/1006553-1-jpn-JP/fhc_echelon_smartplus_01-8.jpg)
![選択肢をPlus 選択肢をPlus](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_01-9/1006556-1-jpn-JP/fhc_echelon_smartplus_01-9.jpg)
IP-RAPID×Synergy DLRによって撮像時間を短くでき,呼吸同期計測や横隔膜同期(Navi)計測など時間のかかっていた検査を短くできます。また,さらに時間を短くし,息止めによる検査に変更することもでき,患者さまの状況に合わせて検査をお選びいただけます。IP-RAPID×Synergy DLRによって選択肢が増え,検査の幅が広がります。
![選択肢をPlus 選択肢をPlus](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_01-10/1006559-1-jpn-JP/fhc_echelon_smartplus_01-10.jpg)
![Plus One Rank 情報量をPlus Plus One Rank 情報量をPlus](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_01-11/1006562-1-jpn-JP/fhc_echelon_smartplus_01-11.jpg)
IP-RAPID×Deep Learningは,Multi Contrast ScanのFatSepやDWIを含む多くの撮像法でお使いいただけます。広範囲DWIやWhole Spine撮像など時間のかかるWide Scanも,気軽にそして簡単に撮像可能です。
![Plus One Rank 情報量をPlus Plus One Rank 情報量をPlus](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_01-12/1006565-1-jpn-JP/fhc_echelon_smartplus_01-12.jpg)
特長<2>
3D解析システム
![3D解析システム 3D解析システム](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_02/1006568-1-jpn-JP/fhc_echelon_smartplus_02.jpg)
特長<3>
Application 撮像の有用性を高める多彩なアプリケーション
![Application 撮像の有用性を高める多彩なアプリケーション Application 撮像の有用性を高める多彩なアプリケーション](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_03/1006571-1-jpn-JP/fhc_echelon_smartplus_03.jpg)
特長<4>
検査中止リスク低減をサポート
![検査中止リスク低減をサポート 検査中止リスク低減をサポート](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_04-1/1006574-1-jpn-JP/fhc_echelon_smartplus_04-1.jpg)
![検査中止リスク低減をサポート 検査中止リスク低減をサポート](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_04-2/1006577-1-jpn-JP/fhc_echelon_smartplus_04-2.jpg)
特長<5>
Image Gallery
![Image Gallery Image Gallery](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_05-1/1006580-1-jpn-JP/fhc_echelon_smartplus_05-1.jpg)
![Image Gallery Image Gallery](/var/ezwebin_site/storage/images/expo/products/fhc_mri_echelonsmart/fhc_echelon_smartplus_05-2/1006583-1-jpn-JP/fhc_echelon_smartplus_05-2.jpg)
・マグネット/ガントリ
・被検寝台
・緊急減磁装置
・オペレーターコンソール
・フィルターボックス
・MRIユニット一式
・校正用ファントム一式
・被検者マット一式
・標準受信コイル一式
・1.5T超電導MRI
・被検者ボア径:60cm開口ボア
・被検者ごとの静磁場補正技術:HOSS(High Order Shim System)
・高い操作性を実現したWorkflow Coil System
・寝台組込型の脊椎用コイル
・据え置き可能な頭受けおよびスライド式頭部用コイル
・広範囲撮像が可能なマルチコイルセッティングシステム
・最大傾斜磁場強度:33mT/m 最大スリューレート:130T/m/s
・画像再構成速度:最大18,000枚/秒(256マトリクス)
・ガントリ重量:5.0t
・設置面積:16m2
・各種ソレノイド/QD受信コイド
・短時間撮像技術 IP-RAPID
・Deep Learning技術を活用して開発した画像再構成技術 Synergy DLR
・検査自動化サポート機能 AutoExam
・Radial scan技術 RADAR (体動低減機能)
・水脂肪分離計測機能FatSep (磁場不均一に強い脂肪抑制技術)
・パラメータ変更補助機能 サジェスチョンUI

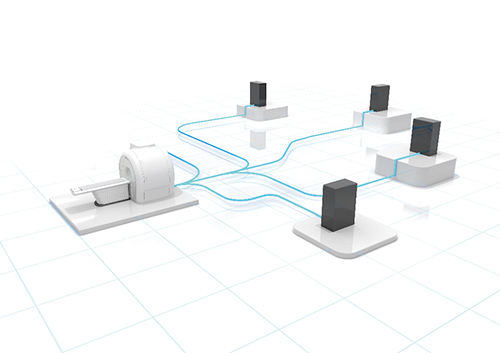

・DICOM通信対応各種アプリケーション
・他各種アプリケーション

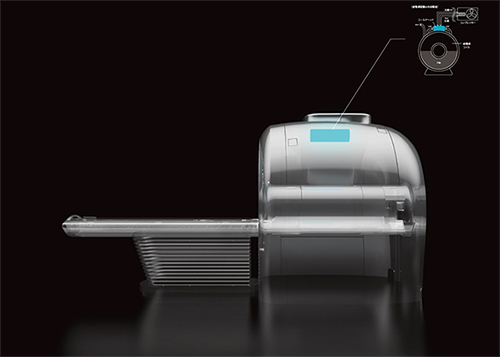

・Sentinel Analytics(超電導MRI装置向け故障予兆診断サービス)
・サービス体制,サービスメニューはお問い合わせください
●お問い合わせ先
富士フイルムヘルスケア株式会社
〒135-0063 東京都江東区有明三丁目5番7号 TOC有明イーストタワー
https://www.fujifilm.com/fhc
